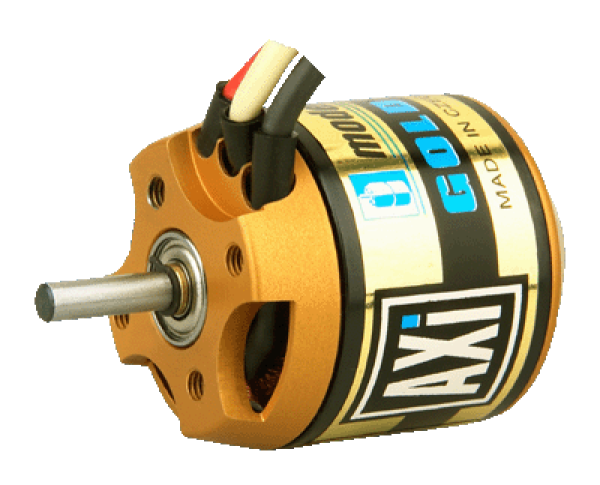

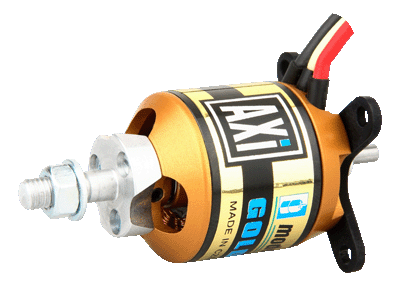

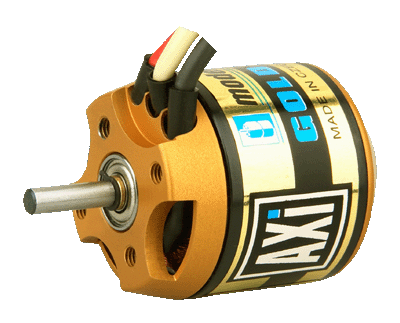

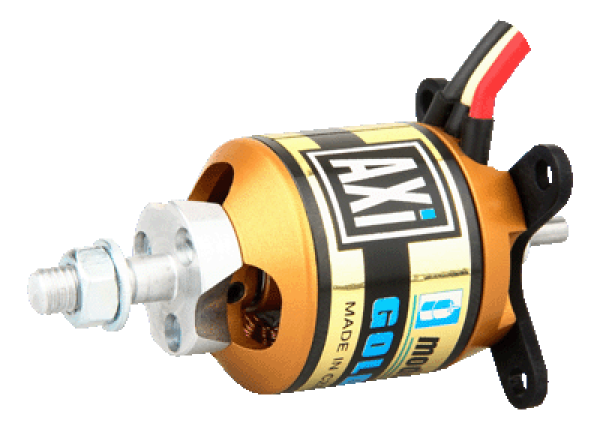

AXI 2217/20 GOLD LINE
Technical specification
| No. of cells | 3s Li-Poly |
| RPM/V | 840 RMP/V |
| Max. efficiency | 82% |
| Max. efficiency current | 8 - 14 A (>75%) |
| No load current | 0,4 A |
| Current capacity | 18 A/60 s |
| Internal Resistance | 185 mohm |
| Dimensions (∅ x L) | 27,7x35 mm |
| Shaft diameter | 3,17 mm |
| Weight | 69,5 g |
Best Practices
 |
 |
 |
 |
 |
||
|---|---|---|---|---|---|---|
 |
900 | 31,7 | 3s | 18A/60s | 18A | 11"x5,5" |
 |
650 | 22,9 | 3s | 18A/60s | 18A | 12"x5" |
 |
1 100 | 38,8 | 3s | 18A/60s | 18A | 12"x6" |
