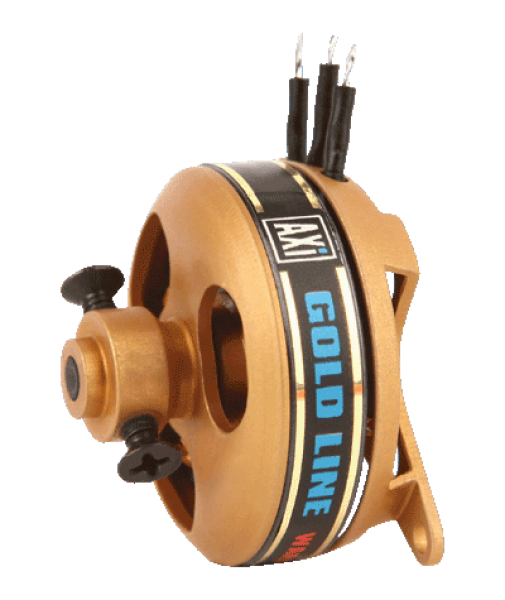

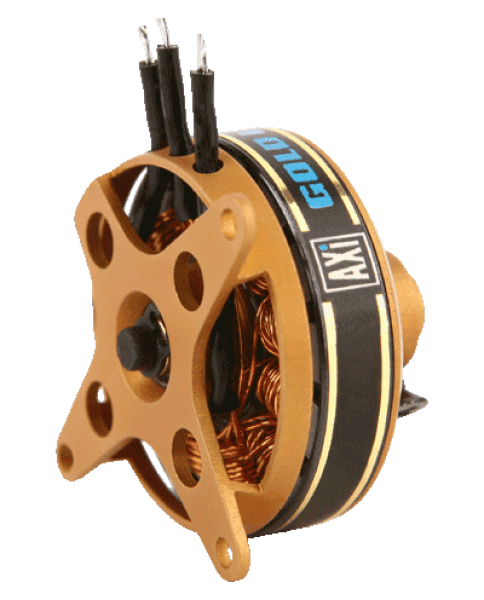

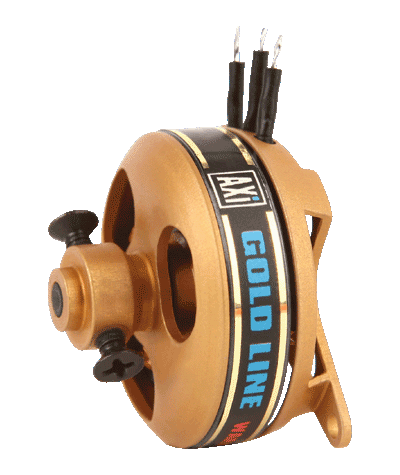

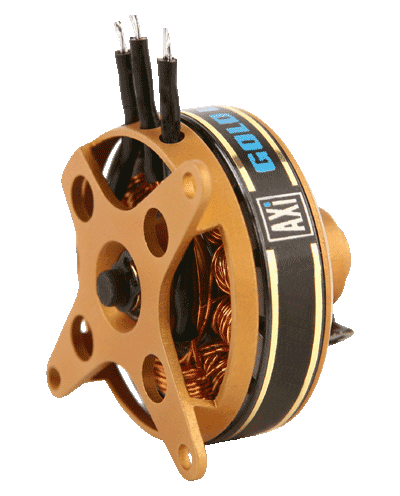

AXI 2203/52 GOLD LINE
Technical specification
| RPM/V | 1525 RMP/V |
| Max. efficiency | 74% |
| Max. efficiency current | 2 - 5,5 A (>69%) |
| No load current | 0,4 A |
| Current capacity | 7 A/20 s |
| Internal Resistance | 390 mohm |

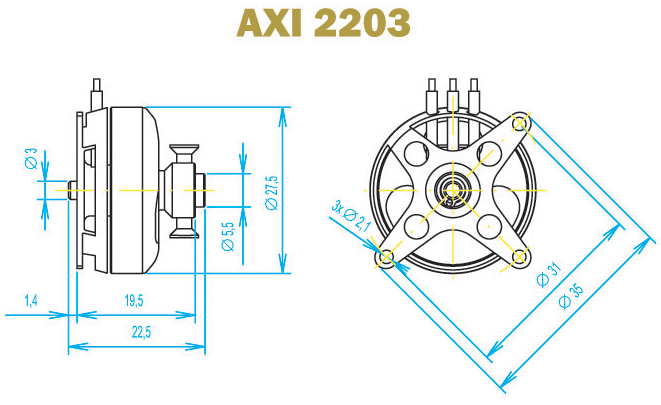

| Dimensions (∅ x L) | 27,5x21 mm |
| Shaft diameter | 3 mm |
| Weight | 18,5 g |
| No. of cells | 2s Li-Poly |
Product description
New very light motor AXI 2203/52 GOLD LINE with carbon shaft, integrated prop saver and three-point mounting lugs reach just 18g in weight. This motor was designed especially for area of the lightest indoor aerobatic models. New three-point mounting lugs allows easy mounting to the fuselage of model and fast centering of motor. 3mm best quality carbon shaft is supported by two ball bearings. This motor is suitable particularly for light 3D and aerobatic indoor models up to 190g in weight.
Best Practices
 |
 |
 |
 |
 |
||
|---|---|---|---|---|---|---|
 |
260 | 9,2 | 2s | 7A/20s | 8A | 8"x3,8" |
 |
190 | 6,7 | 2s | 7A/20s | 8A | 8"x4,3" |
 |
150 | 5,3 | 2s | 7A/20s | 8A | 8"x4,3" |
