AXI 2808/16 GOLD LINE
Technical specification
| No. of cells | 2 Li-Poly |
| RPM/V | 1820 RMP/V |
| Max. efficiency | 82% |
| Max. efficiency current | 10 - 15 A (>75%) |
| No load current | 2 A |
| Current capacity | 26 A/60 s |
| Internal Resistance | 75 mohm |
| Dimensions (∅ x L) | 35x31,5 mm |
| Shaft diameter | 5 mm |
| Weight | 77 g |
| Max. Power | 170 W |
Product description
High torque brushless motor with rotating drum and high power neodym magnets suitable for models of 400-500 size, and up to 1500g in weight. The hardened steel 5mm diameter shaft and is supported by two ball bearings.

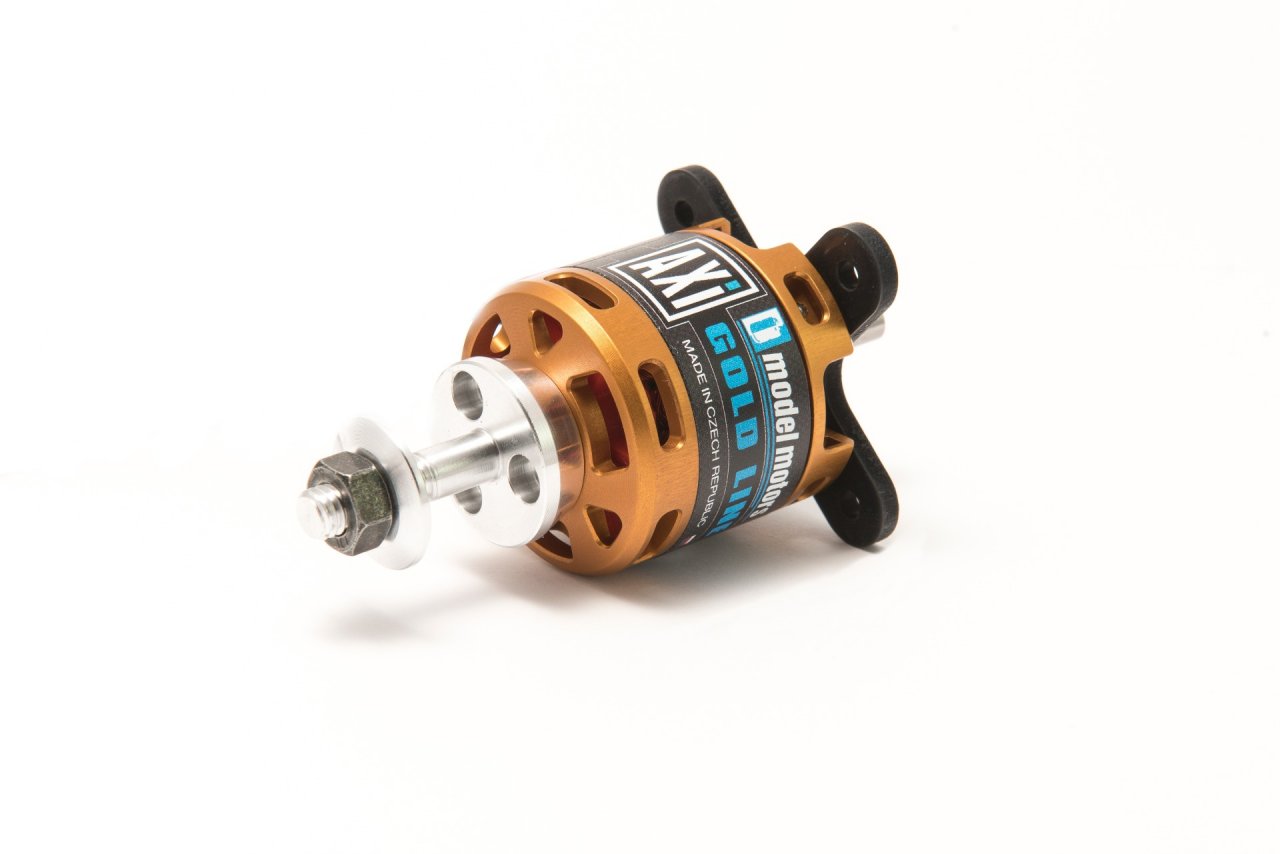

Due to it’s high torque characteristics this motor is capable of turning large propellers with a high level of efficiency and without the need for a gearbox. A new feature in the AXI design is a provision for radial mounting (see picture). Delivered as standard radial mount set includes: mounting flange, propeller adaptor, securing collar, and screws.
Best Practices
 |
 |
 |
 |
 |
||
|---|---|---|---|---|---|---|
 |
900 | 31,7 | 3s | 25A/60s | 30A | 7"x4" |
 |
800 | 28,2 | 3s | 25A/60s | 30A | 7"x4" |
 |
800 | 28,2 | 3s | 25A/60s | 30A | 6"x6" |
 |
2 ccm / .12 -2stroke .18 -4stroke | |||||
